تفاصيل المنتجات

Created with Pixso. المنزل Created with Pixso. المنتجات Created with Pixso.
لوحة شاشة TFT LCD
Created with Pixso.

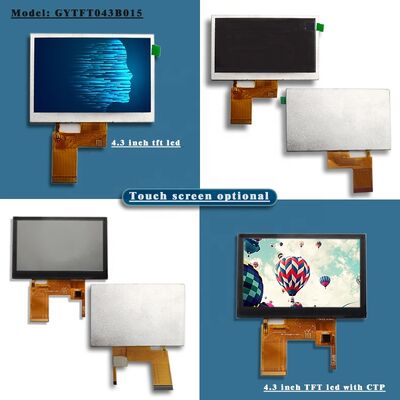

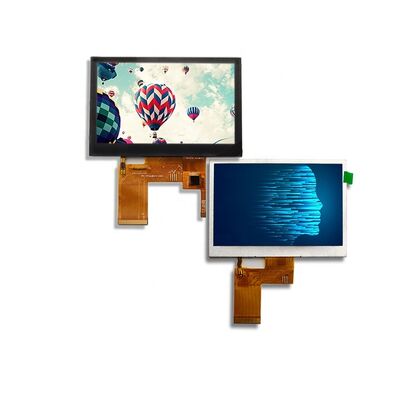

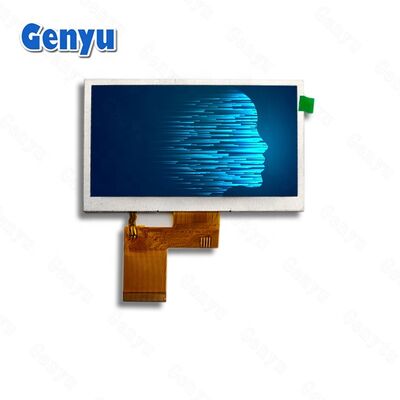

4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle

4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle

4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle

الاسم التجاري: Genyu
الـ MOQ: 10
السعر: $4.57-5.50
معلومات مفصلة
وصف المنتج
معلومات مفصلة
مكان المنشأ:
قوانغدونغ، الصين
نوع العرض:
تفت
حجم العرض:
4.3 بوصة
ترتيب النقطة:
480 (RGB) * 272 نقطة
وضع العرض:
ناقل
زاوية المشاهدة:
IPS
سائق جيم:
NV3047
أبعاد الوحدة:
105.40 × 67.10 × 2.92 ملم
المنطقة النشطة:
95.04 × 53.856 ملم
نوع الواجهة:
واجهة RGB
النصوع:
350 شمعة/م2
درجة حرارة التشغيل:
-20 ~ +70
قرار بكسل:
480x272
نوع الموصل:
مقبس 40 دبوس FPC
تقنية الشاشة:
IPS
شاشة ملونة:
نعم
إبراز:

4.3 inch TFT LCD Display,480x272 RGB TFT LCD Screen,IPS Viewing Angle TFT LCD Panel

,

480x272 RGB TFT LCD Screen

,

IPS Viewing Angle TFT LCD Panel

وصف المنتج
4.3 Inch TFT LCD Display with IPS Technology
High-quality 4.3-inch TFT LCD display featuring 480×272 pixel resolution, IPS viewing angle technology, and RGB interface connectivity. This industrial-grade display module offers excellent color reproduction and wide viewing angles for various applications.
Product Overview
4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 0 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 1 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 2 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 3 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 4 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 5 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 6 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 7 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 8 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 9 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 10
Key Features
  • 480×272 pixel resolution color display
  • IPS technology for wide viewing angles

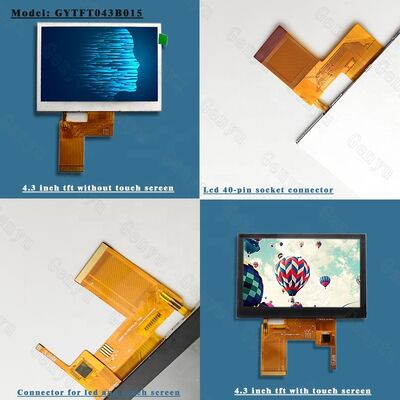

  • 40-pin socket FPC RGB interface
  • 4.3-inch active display area
  • NV3047 driver IC
  • 350 cd/m² brightness
  • Operating temperature: -20°C to +70°C

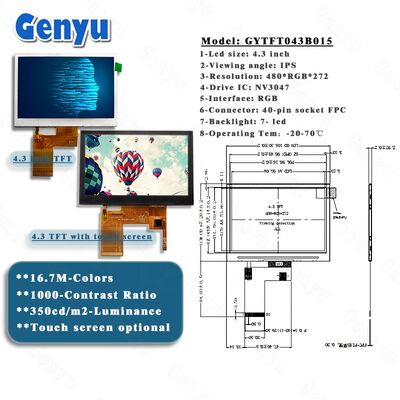

Technical Specifications
Display Type 4.3 Inch TFT
Dot Arrangement 480(RGB)×272
Display Mode RGB TFT LCD
Viewing Angle IPS
Driver IC NV3047
Module Outline 105.40 × 67.10 × 2.92 mm
Active Area 95.04 × 53.856 mm
Interface RGB Interface
Luminance 350 cd/m²
Operating Temperature -20°C to +70°C
4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 11 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 12 4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 13
Packaging & Delivery
4.3 Inch TFT LCD Display with 480x272 RGB Resolution and IPS Viewing Angle 14
Professional, environmentally friendly, and efficient packaging services ensure the safe delivery of your goods. We provide secure packaging designed specifically for electronic components and display modules.
Frequently Asked Questions
Who are we?
We are Shenzhen Genyu Optical Co., Ltd., based in Guangdong, China, established in 2003. With over 700 employees, we serve global markets including Domestic Market (60%), North America (5%), Africa (5%), Mid East (5%), and Eastern Asia (5%).
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspections before shipment to ensure product quality and reliability.
What can you buy from us?
We specialize in LCD Displays, OLED Displays, TFT Displays, Backlight units, TFT LCD, COG LCD, COB LCD, and OLED Display solutions.
Why should you buy from us instead of other suppliers?
With over 20 years of production experience, we offer comprehensive design, development, and production capabilities for customized LCD, LCM, B/L, and FPC solutions. Our expertise covers TN, HTN, STN, FSTN, VA LCD technologies, LCD modules, and touch screens.
What services can we provide?
We accept various delivery terms (FOB, CIF, EXW, DDU, Express Delivery) and payment methods (T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow). We conduct business in English and Chinese.
Related Products: 4.3 TFT LCD Display, 4.3 TFT LCD Touch Screen Module Display
